DELO-DIV Volumetric Dispensing Valve
Achieve new standards in adhesive dispensing with the DELO-DIV volumetric dispensing valve. Their precision and efficiency make them the ideal solution for mass production of electronic components. High-end components such as those found in the automotive industry require high-tech dispensing systems. Optimise your manufacturing processes with the DELO-DIV series of volumetric valves.
What is the DELO-DIV Volumetric Dispensing Valve?
This volumetric one-component dispensing system applies the smallest adhesive quantities with maximum precision. Thanks to the proven endless-piston principle, the needle-based dispensers achieve a dispensing precision of up to 99% for both low and high-viscous media. Clean, drip-free, and reproducible dispensing is possible regardless of viscosity fluctuations.
Key Features of the DELO-DIV Volumetric Dispensing Valve
- Reproducibility: Dispensing accuracy of up to 99 %
- Precision: Independent of pressure, time, and temperature
- Activation-On-The-Flow: Suitable in combination with complex geometries and opaque materials
- Large Dispensing Volumes: Flow rates of up to 16.0 ml/min
- Small dispensing quantities: Precise dispensing as little as 2µl without drop formation
Adhesives are preactivated during dispensing

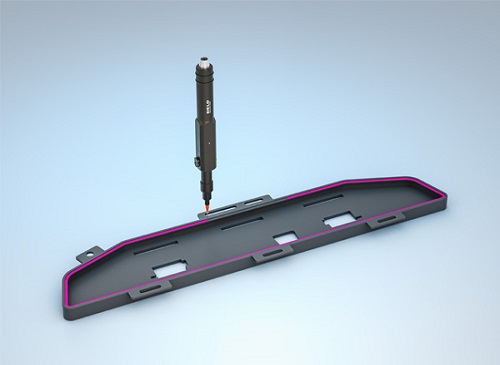

In combination with DELO’s new process technology “Activation-On-The-Flow”, the DELO-DIV is particularly suitable for complex geometries and opaque materials. With this technology, light-curing adhesives are preactivated during dispensing. With additional light fixation, the components can be processed directly.
DELO-DIV Models
The DELO-DIV VD330 is the most compact model of the series. It’s ideal for the smallest dispensing quantities with a minimum dispensing volume of 2µl and a volume flow of 0.2 to 3.3 ml/min.
The DELO-DIV VD450 is also very lightweight and compact, making it ideal for tight production systems. It’s ideal for small dispensing quantities with a minimum dispensing volume of 4µl and a volume flow of 0.5 to 6 ml/min.
The DELO-DIV VD600 can dispense small amounts as low as 15μl. It shows its strengths to the fullest extend with larger flow rates of 1.4 – 16.0 ml/min.
DELO-DIV Technical Data
| Compact | Lightweight | Highest flow rate | |
|---|---|---|---|
| DELO-DIV VD330 | DELO-DIV VD450 | DELO-DIV VD600 | |
| Dimensions | Ø 33 mm x 225 mm | Ø 33 mm x 228 mm | Ø 40 mm x 274 mm |
| Media viscosity | Aqueous to pasty | Aqueous to pasty | Aqueous to pasty |
| Volume flow | 0.2 – 3.3 ml / min | 0.5 – 6 ml / min | 1.4 – 16 ml / min |
| Minimum dispensing volume | 0.002 ml | 0.004 ml | 0.015 ml |
| Dispensing precision | +/- 1 % | +/- 1 % | +/- 1 % |
| Material input | G 1/8″ DIN/ISO 228 | G 1/8″ DIN/ISO 228 | G 1/8″ DIN/ISO 228 |
| Material output | Luer-Lock (patented) | Luer-Lock (patented) | Luer-Lock (patented) |
| Repeatbility | > 99 % | > 99 % | > 99 % |
| Weight | 300 g | 300 g | 650 g |
Scroll Table Left Scroll Table Right
Got a Question About the DELO-DIV Volumetric Dispenser?
Whether you’re developing a new product or refining an existing process, Inseto’s team of experts is here to help.
From selecting the right dispensing system to optimising your curing process, we provide technical guidance, documentation, and samples to support your application needs.
Related Products
Further Information
Applications
Dispense Of DELO Adhesives, Dispensing Of Other Manufacturers Adhesives
Industry Segments
All
View more details about DELO-DIV on the DELO Website
https://www.delo-adhesives.com/products/devices/detail/delo-div/
Region
Available from Inseto in the United Kingdom & Ireland
