Spot Curing LED Lamps: DELOLUX 50 Series
With intensities of up to 18,000 mW/cm², these spotlights can achieve exposure times of under a second. The LED lamp heads stand out with their low power consumption and low maintenance requirements.
What are DELOLUX Spot Curing LED Lamps?
The DELOLUX 50 high intensity LED curing lamps are an excellent option for quick and precise curing of adhesives.
Detailed technical information on DELO’s light-cured adhesives can be found here.
Key Features of DELOLUX Spot Curing LED Lamps
- Spot curing LED lamp series ø: DELOLUX 50: 8.6mm or 11.5mm; 502: 7mm x 2mm; 503: 10mm x 3mm, 30° inclined; 504: 7mm x 2mm; 505: 10mm
- Independent irradiation of multiple bonding areas
- Interchangeable lenses allow specific light focusing
- Maximum intensity of 18,000 mW/cm²
- Easy integration into a production system due to very small LED heads
- Long operation life of > 20,000 hours
- Available in 365nm, 400nm or 460nm options
DELOLUX 50 Series Resources
File
DELOLUX 50 Series High-intensity Spot Lamps Brochure
Download
File
DELOLUX pilot S Series Control Unit for Spot Lamps Flyer
Download
File
DELOLUX 50 / 505 Spot Light LED Curing Lamps Flyer
Download
File
DELOLUX 502 / 503 / 504 / 506 Spot Light LED Curing Lamps Flyer
Download
File
DELOLUXcontrol Light Intensity Meter Flyer
Download
Light curing made easy

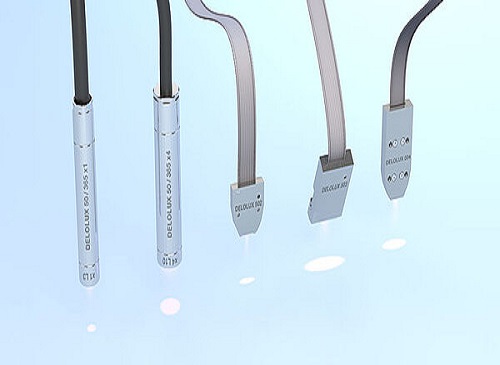

The DELOLUX 50 series includes a wide variety of lamp heads. The light exit areas of these lamp heads range from 1 mm to 15 mm. Combined with the plug & play design and space-saving construction, this enables seamless integration into existing production lines. With a lifespan exceeding 20,000 hours, these spot lamps deliver long-term performance with high homogeneity, consistent intensity, and associated high process reliability. The operation is controlled via the DELOLUX pilot S series and supports PLC. A passive cooling mechanism using heat sinks in the lamp head enhances efficiency, even in automated processes with short cycle times
DELOLUX 50 | DELOLUX 505
The DELOLUX 50 and 505 feature a round design and offer exceptional flexibility: distance, irradiation area, and intensity can be individually adjusted depending on the lens.
The DELOLUX 50 lamp head is available in three different wavelengths and offers the possibility of achieving peak intensities of more than 18,000 mW/cm². Depending on the lens, the lamp heads are designed for typical working distances of 3 – 30 mm.
The DELOLUX 505 enables larger working distances while maintaining high intensity and homogeneity. The lamp heads can be used for working distances of 16 – 40 mm and achieve peak intensities of more than 8,700 mW/cm².
DELOLUX 502 | DELOLUX 504
The DELOLUX 502 and 504 feature a more rectangular design, which is particularly suitable for use in active alignment systems.
The DELOLUX 502 has the most compact design and still offers the possibility of achieving peak intensities of more than 2,000 mW/cm² at an optimized working distance of 5 – 8 mm.
The DELOLUX 504 is the most powerful of the variants and achieves a peak intensity of more than 7,500 mW/cm² at working distances of 5 – 10 mm.
DELOLUX 503 | DELOLUX 506
The DELOLUX 503 and 506 feature a special angle at the light outlet, which is particularly suitable for use in confined installation spaces or in automated production lines.
The DELOLUX 503 emits light at an angle of 30°, while the DELOLUX 506 emits light at an angle of 50°. Both lamp heads achieve peak intensities of more than 1,600 mW/cm² at working distances of 15 mm.
DELOLUX 50 Series Technical Data
| Variability | Powerful & flexible | Compromising | Most compact | Different angle | Powerful | |
|---|---|---|---|---|---|---|
| DELOLUX 50 x1 | DELOLUX 50 x4 | DELOLUX 505 | DELOLUX 502 | DELOLUX 503 | DELOLUX 504 | |
| Dimensions of lamp head | 12 mm dia. x 71 mm | 15 mm dia. x 76 mm | 12 mm dia. x 64 mm | 20 × 4.9 × 21.3 mm | 20 × 7 × 37 mm | 20 x 7.3 x 42 mm |
| Light exit area | 8.6 mm dia. | 11.5 mm dia. | 10 mm dia. | 7 × 2 mm | 10 × 3 mm | 7 × 2 mm |
| Light intensity | 365 nm ≥ 18,000 mW / cm² @ 2 mm 400 nm ≥ 15,000 mW / cm² @ 2 mm 460 nm ≥ 14,000 mW / cm² @ 2 mm | 365 nm ≥ 3,500 mW / cm² @ 9 mm 400 nm ≥ 7,000 mW / cm² @ 9 mm | 365 nm ≥ 7,950 mW / cm² @ 10 mm 400 nm ≥ 10,500 mW / cm² @ 10 mm | 365 nm: ≥ 1,350 mW/cm² @ 6 mm | 365 nm: ≥ 1,000 mW/cm² @ 15 mm 400 nm: ≥ 1,600 mW/cm² @ 15 mm 460 nm: ≥ 1,300 mW/cm² @ 15 mm 460 nm LP: ≥ 500 mW/cm² @ 15 mm | 365 nm: ≥ 5,200 mW/cm² @ 6 mm 400 nm: ≥ 7,500 mW/cm² @ 6 mm |
| Wavelengths | 365 nm, 400 nm, 460 nm | 365 nm, 400 nm, 460 nm | 365 nm, 400 nm | 365 nm | 365 nm, 400 nm, 460 nm | 365 nm, 400 nm |
| Cooling mechanism | Passively cooled, heat sink in lamp head | Passively cooled, heat sink in lamp head | Passively cooled, heat sink in lamp head | Passively cooled, heat sink in lamp head | Passively cooled, heat sink in lamp head | Passively cooled, heat sink in lamp head |
| Control | DELOLUX pilot S series | DELOLUX pilot S series | DELOLUX pilot S series | DELOLUX pilot S series | DELOLUX pilot S series | DELOLUX pilot S series |
| Product compatibility | Lenses:* L1, L2, L3, L6 *Special lenses on request | Lenses:* L5, L10 *Special lenses on request | Lenses:* S3, S4, S6, S8, S10 *Special lenses on request |
