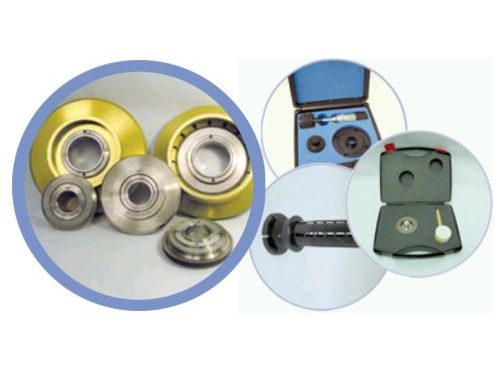

Annular Dicing Blade Flanges and Accessories
Flanges & Accessories Key Features
- 2″-3″ Flanges; Single Blade Flange Sets 40 mm Blade I.D. (1.575″)
- 4″ Flanges; Single Blade Flange Sets 88 mm Blade I.D. (3.497″)
- 4 Inch Flange Handling Kit
- Dynamic balancing of Flange set
- High Cooling Flange set
- Multi Gang Blades Flange set
Flanges and accessories play a critical role in achieving accurate, stable, and repeatable dicing performance when using annular, hub free dicing blades. ADT flanges are precision manufactured to securely mount blades to the spindle while controlling blade exposure, directly influencing cut quality, blade life, and process stability.
Available for blade diameters from 2 inch to 5 inch, ADT flange sets support resin bond, nickel bond, and metal bond sintered dicing blades. A wide range of flange diameters allows blade exposure to be optimised for different materials, substrate thicknesses, and cutting conditions.
Dynamic balancing and high cooling flange options are available to reduce vibration, improve heat management, and maintain consistent performance during high speed or high load dicing operations. These features help minimise blade deflection, extend blade life, and improve kerf accuracy.
ADT also offers a range of accessories, including flange handling kits, dressing boards, and setup tools, designed to support safe blade installation, accurate alignment, and ongoing process control. Together, ADT flanges and accessories provide a reliable and flexible solution for precision dicing applications across semiconductor, electronics, and advanced materials processing.
Flanges & Accessories Technical Downloads
File
Dicing Process Handling Tips
Download
Related Products
Resin Dicing Blades
More
Nickel Dicing Blades
More
Sintered Dicing Blades
More
Wafer Dicing Hub Blades
More
Dicing Equipment
More
Knowledge Base Articles
Further Information
What are Annular Dicing Blade Flanges
Annular dicing blade flanges are precision mounting components used to secure hub free dicing blades to the spindle of a dicing saw.
Because annular blades are supplied without a supporting hub, flange sets play a critical role in holding the blade concentrically, defining blade exposure and balance, ensuring stable, accurate cutting performance. The quality and configuration of the flange directly influence cut accuracy, blade life, and overall process stability.
Key characteristics of nickel dicing blades include:
- Annular dicing blade flanges clamp the blade securely to the spindle, maintaining concentric alignment during high‑speed rotation.
- Flange outer diameter determines the effective blade exposure, making flange selection critical to process optimisation.
- Flanges are available for blade diameters from 2 inch to 5 inch and are compatible with resin bond, nickel bond, and metal bond sintered dicing blades.
- Specialised flange options, including dynamically balanced and high‑cooling designs, support demanding dicing applications.
