Thick Film Silver Conductors
Silver Conductive Pastes Key Features
- Suitable for all processes – etchable, solderable, etc.
- Wide range of firing temperatures (450 – 1,050ºC)
- Thinners available for extended working life (information on-demand)

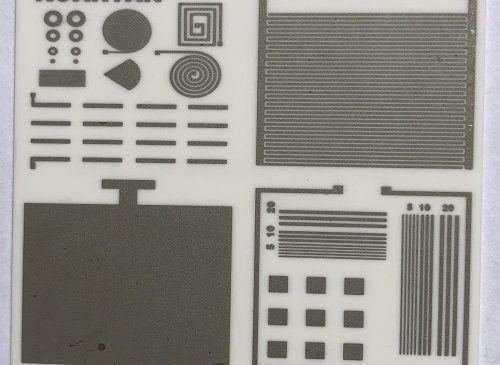

Koartan manufactures a comprehensive range of Gold, Silver, Palladium and Platinum conductive thick-film pastes for a wide variety of Microelectronic Hybrid applications.
Their range of Silver-bearing pastes includes conductor materials, termination metallisation’s, plateable inks, low-temperature firing from 400°C, and also lead- & cadmium-free products.
Koartan also offers combinations of Silver Palladium and Silver Platinum with a wide range of properties: high leach resistance, excellent solder acceptance, and some lead-free and cadmium-free materials.

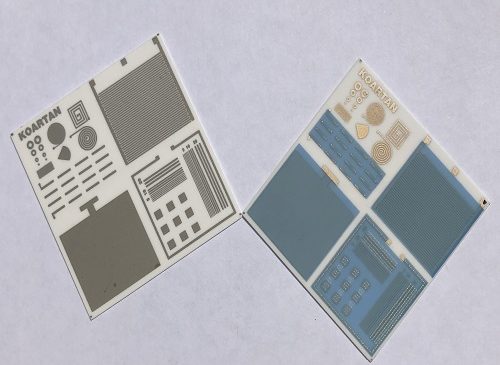

Koartan Gold pastes are suitable for high conductivity thick film requirements, on both alumina and aluminium nitride. Included in the portfolio are both wire-bondable and solderable materials, as well as pastes for via plugging or edge coating. Wire-bondable and solderable Gold pastes are also available for low temperature firing applications, starting at 500°C, without any compromise in adhesion. Lead-free and cadmium-free options are also available.
Thick Film Conductive Pastes Technical Downloads
File
Koartan Thick Print Gold Paper – IMAPS2002
Download
Silver Thick Film Conductor Product Range
Part#
Type
Description
Part#
6101
Type
Via Fill
Description
Low shrinkage paste for filling large via holes in multilayer dielectrics, fires at 850ºC
Download
Part#
6111
Type
Plateable
Description
General purpose, excellent line resolution, suitable for RF applications, fires at 850ºC
Download
Part#
6120
Type
100% Ag
Description
Fine line, general purpose, inner multi-layer trace, fires at 850ºC
Download
Part#
6122
Type
AlN Silver
Description
High adhesion silver conductor for aluminum nitride (AlN), fires at 850ºC
Download
Part#
6125
Type
Low resistivity
Description
High solids content, thick printing for low resistivity applications, fires at 850ºC
Download
Part#
6130
Type
Thru-hole
Description
Thin, highly conductive coating for the inside of holes and castellations, fires at 850ºC
Download
Part#
6150
Type
Etchable
Description
High conductivity, 100% silver for etching fine lines, fires at 850ºC
Download
Part#
6165
Type
High conductivity
Description
Low temperature firing, high electrical conductivity, fire at 500°C
Download
Part#
6165-SI
Type
Silicon silver
Description
Low temperature firing, for use on silicon substrates, high electrical conductivity, fires at 450°C
Download
Part#
6166
Type
Solderable
Description
Low temperature, high conductivity, for resistor terminations, fires at 600°C
Download
Part#
6540
Type
Substrate Plug
Description
For plugging holes in alumina substrates, for two-sided circuits, fires at 850ºC
Download
Part#
6550-1
Type
Etchable
Description
For very thin metalisation applications, multi-layer, fires at 850ºC
Download
Related Products
Solder Preforms & Ribbon
More
Die Attach Adhesives
More
Bonding Wire & Ribbon
More
Hermetic Power Packages
More
Bathtub & Flatpack Packages
More
Knowledge Base Articles
Description
Description
Laser Trimming Basics (IKB-052)
Link
Description
Adhesives for Die Attach (IKB-071)
Link
Description
Die Attach Process: Guidance and Setup (IKB-072)
Link
Description
Bonding Wire Sizes & Selection (IKB-037)
Link
Description
Bond Wire Handling Considerations (IKB-023)
Link
Further Information
What are Thick Film Silver Conductors
Thick film silver conductors are printable conductive pastes used to form electrical interconnects, terminations, and conductive features in thick film and hybrid microelectronic circuits.
Applied by screen printing onto ceramic or compatible substrates and subsequently fired, these materials create continuous silver‑based conductive paths that combine high electrical conductivity with cost‑effective processing.
Thick film silver conductors are widely used across power electronics, hybrid circuits, and multilayer ceramic assemblies.
Key characteristics of thick film silver conductors include:
- Silver offers very high electrical conductivity at a lower cost than noble metal alternatives, making it suitable for many interconnect and power applications.
- Thick film silver conductors are screen printed and fired, forming durable conductive tracks bonded to the substrate.
- These materials are commonly used where solderable surfaces are required for reliable component attachment.
- Because silver can migrate in humid or biased environments, appropriate design measures are typically used to ensure long term reliability.
Inseto Knowledge Base Document:
Read our guide to “Laser Trimming Basics“
Wiki – Thick Film Technology
Applications
Microelectronic Devices, Microwave Devices, Heating Elements, Printable Resistors & Thermistors
Industry Segments
Microelectronic / Hybrid Assembly, Photonic Devices, Microwave Electronics, Automotive Electronics, Wireless Telecommunications, Data Processing, Instrumentation, Military, Consumer Electronics, Industrial Electronics
