Applied Thin-Film Products – Capabilities Overview

ATP makes its own hard surface photomasks in a Class-100 chamber, produced on precision pattern-generated equipment. ATP routinely produces images in chrome and iron oxide on high-quality soda lime glass, and has extensive expertise in imaging on photographic emulsion. Masks are typically generated from AutoCAD, DWG or DXF files, and SolidWorksTM.

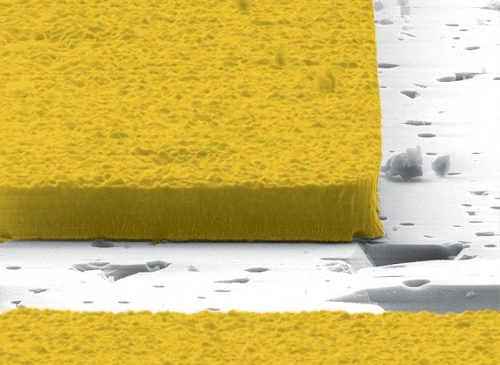

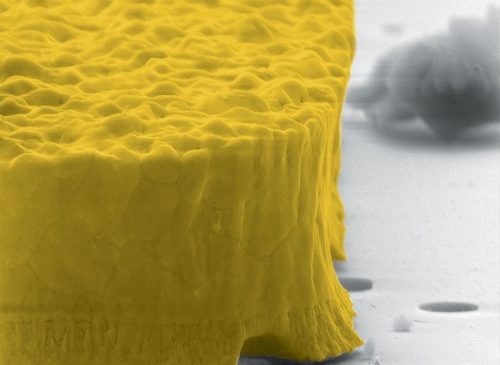

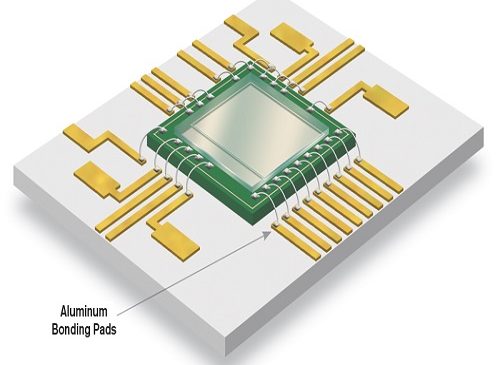

Sputtering is the deposition method of choice due to its superior adhesion. The basic metalisation scheme for thin film substrates contains TiW as the adhesion layer and Au as the conductor layer (TiW/Au). Solderable metalisation is achieved by adding Ni and / or Cu. Palladium can also be added as a solderable film when using high temperature eutectic solders such as the SAC products. The final combination depends on the customer application.

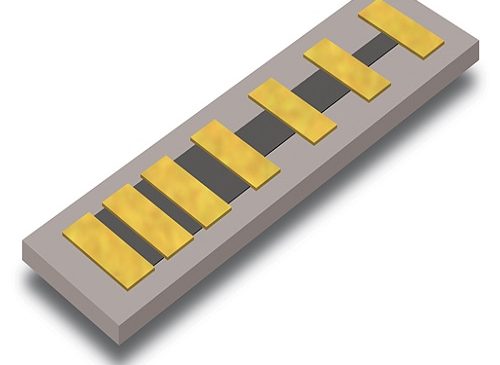

TaN resistor metalisation can be integrated onto substrates to allow for a wide range of resistivities – 10-200 Ω/Sq. The most cost-effective ones are 50, 75 & 100 Ω/sq. Resistor tolerances are dependent on material surface finishes and resistor design layout. ATP also offers laser trimming to tolerances as low as ±0.5%, or ±0.25 Ω, if required.

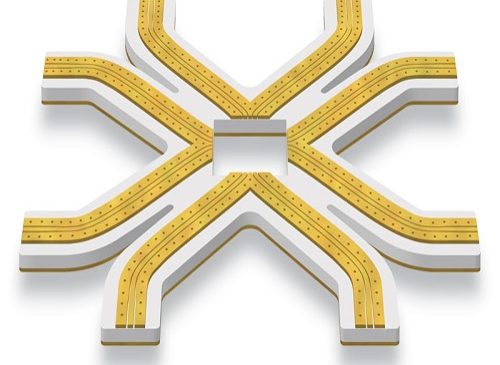

Computer-controlled lasers at ATP can create features of virtually any planar shape in ceramic substrates, and can deliver a positional accuracy of 0.001″ (0.0254mm) or better over areas as large as 8″x8″ (203.2mm x 203.2mm). The lasers are extremely flexible and permit close location of features with considerable layout flexibility. These shapes include circles, curves, rectangles, polygons, rounded thin slots, etc.

Ion Beam Milling is a dry etching technique where the ions of an inert gas are accelerated from an ion source into the surface of the substrate in order to remove metals, providing an alternative to traditional wet etching methods. Because it is an anisotropic process, metal removal only occurs in the Z-axis, resulting in minimum undercutting of the underlying metals during the removal process, and achieving nearly-vertical sidewall profiles repeatedly.

Related Products

Knowledge Base Articles

Further Information

Contact Us

Tel: +44 (0)1264 334505

Email: enquiries@inseto.co.uk

What are ATP’s Thin Film Circuit Capabilities

ATP’s thin film circuit capabilities encompass a comprehensive range of in‑house fabrication, processing and finishing technologies used to manufacture high precision metalised thin film circuits and substrates.

These capabilities include photomask generation, thin film metal deposition, laser processing and advanced etching techniques, allowing complex circuit geometries with tightly controlled electrical and dimensional performance.

ATP supports a wide selection of substrate materials and metallisation schemes, with integrated features such as resistors, vias, double‑sided patterning and polyimide supported bridges.

Together, these capabilities enable the production of reliable thin film circuits for demanding RF, microwave, photonic, aerospace and high‑reliability electronic applications.

Key ATP capabilities include:

  • In‑house photomask generation and imaging produced internally.
  • Thin film metal deposition and metallisation schemes including adhesion, conductive and solderable layers.
  • Integrated resistors and laser processing including trimming, machining and drilling.
  • Advanced structuring and etching techniques including Ion beam milling and laser processing.
  • Complex features including vias, wrap‑arounds, double‑sided patterning and polyimide supported bridges.

Inseto Knowledge Base Document:

Read our guide to “What is Microelectronics Assembly”

Wiki – Thin Film

Thin Film overview – Wikipedia

Applications

Thin Film Substrates, Thin Film Metalised Blocks, Thin Film Devices, Laser Diode Sub Mounts, Photodiode Mounts, Chip Mounts, Wire Bond Standoffs, Cooler Spacers, Ceramic Spacers, Microwave Metalized Circuits, RF Circuits, High Frequency Devices

Industry Segments

Military & Aerospace, Telecommunications, Fibre Optics, Photonics, Microwave Electronics, Microelectronics, Space & Research, General Power Electronics, Concentrated Photovoltaic (CPV), Military & Aerospace, Avionics, Automotive, Renewable Energy, Mass Transit etc.
