Dage Stellar 4000 – Bond Tester
Key Features:
- Wire Pull, Twezer Pull, Bond Shear, Die Shear & Component
- Fine Wire or Large Wire Pull Test
- Quick & easy to interchange between test types
- Compatible with existing 4000 Series Test Cartridges
- Patented load cartridges guarantee accuracy, repeatability and correlation
- Excellent ergonomics
- Clean room friendly, enclosed design
- Assessed to SEMI S2 H&S and SEMI S8 ergonomic standards
- Intuitive Paragon Lite™ software interface
Dage Stellar 4000 – Bond Tester overview:

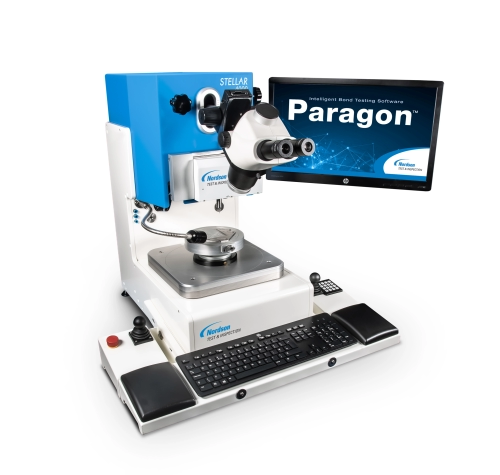

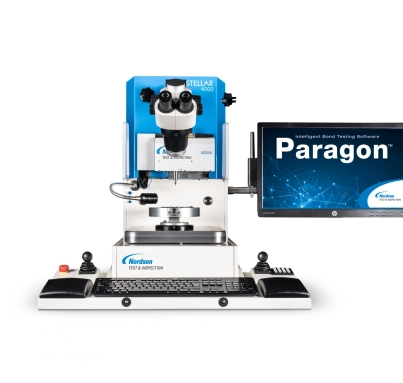

The STELLAR 4000 is the platform of choice for all manually operated pull test, ball shear, and die shear production bond testing. Depending on the application requirements, quick change test cartridges enable a rapid change in test methods, from wire pull to shear test for example.

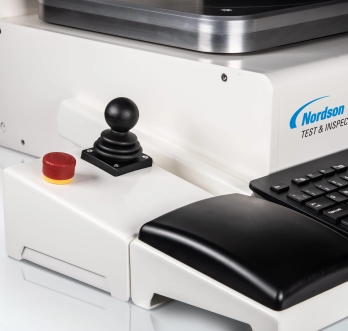

The systems patented technology for frictionless bond or die shear and superior ergonomics ensures repeatable and reproducible results, combined with an excellent user experience.
The machines are used in research, production and quality assurance environments and feature a streamlined Paragon Lite™ operating software, which is designed with the operator in mind, making the software extremely user friendly whilst not losing any functionality, such as automatic GR&R calculation, built-in diagnostics, a unique database search engine wizard and superior reporting.
Highly Versatile:
An XY stage with 100mm x 100mm of travel, along with a maximum shear force of 100Kg and pull force of 10Kg makes the Stellar a highly versatile system for all production requirements.
Cartridge Compatibility & Correlation:
Nordson DAGE recognizes that data correlation is fundamental for cross referencing test results between old and new platforms. Existing users of Nordson DAGE bond testers (4000 and 5000) can not only use their existing Bond Test Cartridges on the new STELLAR 4000 but also confidently compare the pull and shear test data between old and new machines.
Dage Stellar 4000 – Bond Tester: Downloads
File
Nordson DAGE Stellar 4000 Bond Tester Brochure
Download
Stellar 4000 Test Methods Include:
Wire Pull Test
More
Wire Bond Shear Test
More
Die Shear Test
More
Stud Die Pull Test
More
Tweezer Peel Pull Test
More
Related Products
Bonding Wire and Ribbons
More
Die Attach Adhesives
More
Automatic Die Bonders
More
Manual Die Bonders
More
Automatic Wire Bonders
More
Knowledge Base Articles
Description
Description
Understanding Shear Test: Ball Bond and Die Shear (IKB-018)
Link
Description
MIL STD 883 Shear Testing (IKB-026)
Link
Description
Understanding Wire Pull Testing (IKB-003)
Link
Description
Peel Testing (IKB-032)
Link
Further Information
Applications
Semiconductor Defect Analysis & Characterisation, Wire Bond Testing, Validation Of Process & Machine Setup, In Process Quality Control, Wire Bond Strength Analysis, Materials Testing, Die Shear & Bond Shear Strength Checks including: Ball Shear/Solder Ball Shear, Cold Bump Pull, Die Shear, First Bond Ball Pull/Stud Bump Pull, High Force Pull, High Strain Rate, Ribbon Peel, Ribbon Pull, Stud Pull, Tweezer Pull, Vector Pull, Wedge Shear, Wire Pull & Zone Shear.
Industry Segments
Semiconductor, Automotive, Aerospace, Military, Telecommunications, Medical Electronics, Fibre Optics, Photonic Assembly, Microwave Electronics, Microelectronics, Power Semiconductor Assembly, Semiconductor Back-end Assembly, PCB Assembly Industries, Universities, Medical Devices
