Flow Cryostat Probe Station

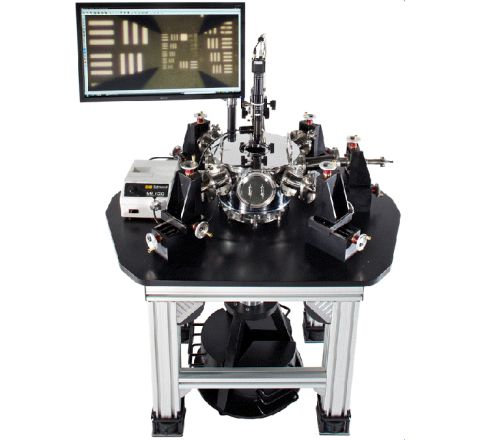

The Advanced Research Systems PS‑L Flow Cryostat Probe Station is a liquid cryogen based probe station designed for electrical, RF, microwave, and optical device characterisation at cryogenic temperatures. It uses liquid helium or liquid nitrogen flow cryostats to achieve stable sample temperatures of approximately 4 K or 77 K, making it well suited to applications where low mechanical vibration and direct cryogen cooling are required.

The PS‑L shares a common platform with ARS closed cycle probe stations, using the same tabletop, vacuum chamber, and probe arm architecture. This modular design allows the flow cryostat to be removed and replaced with a closed cycle cryogen free configuration if future testing requirements change.

Flow Cryostat Cryogenic Measurement Capability

Flow cryostat probe stations are often selected where minimal vibration, fast thermal response, or direct control of cryogenic fluids is required. The PS‑L provides a large, clean vacuum environment with a stainless steel chamber and a nickel plated OFHC copper radiation shield, supporting stable low temperature operation and efficient thermal performance at the sample stage.

By operating with liquid helium or liquid nitrogen, the system supports low vibration measurements for sensitive electrical transport, microwave, and optoelectronic experiments at cryogenic temperatures.

Probe and Measurement Flexibility

The PS‑L probe Station supports up to six micromanipulated probe arms, configurable for DC, RF, or fibre optic probing. A 2 inch measurement area accommodates a wide range of sample sizes and device layouts, from packaged devices to small scale research structures.

The shared mechanical platform with ARS closed cycle systems ensures consistent probe positioning, stable contact, and repeatable measurements across a wide range of test configurations.

Ultra‑High Vacuum (UHV) Flow Cryostat Probe Stations

UHV flow cryostat probe stations combine cryogenic liquid cooling with ultra‑high vacuum conditions for contamination sensitive measurements. These systems are typically bakeable and can achieve vacuum levels down to 10⁻¹¹ Torr while maintaining cryogenic operation below 4 K, making them suitable for surface science, quantum materials, and low temperature transport studies.

Typical Applications

ARS flow cryostat probe stations are widely used for:

• DC and RF device characterisation
• Microwave property measurements
• MEMS and nanoscale electronics testing
• Superconductivity and quantum device research
• Electrical and optical characterisation of nanoscale devices
