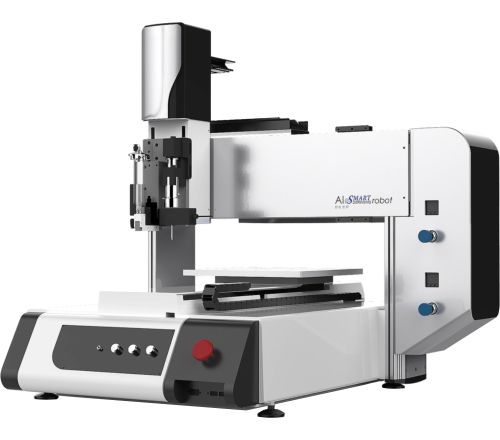

Desktop Dispensing Robot Series
Key Features
- Precision XYZ gantry with an approximately 300 mm × 300 mm dispensing area
- Integrated vision providing fiducial recognition and advanced image processing
- Multi axis motion control with synchronised dispense height control
- Multiple dispensing valves: jetting, progressive cavity, and solder paste etc.
- Software with CAD import, automatic path generation and dispense inspection
- Compact desktop system with machined construction for stable operation
The Kulicke and Soffa Desktop Dispensing Robot Series is a compact dispense platform designed for research, development and low to medium volume production.
The system is widely used in electronics manufacturing for dispensing adhesives, underfills, solder pastes, coatings and other functional materials, and in industrial applications requiring high-precision deposition.
The equipment combines accurate multi axis motion, advanced vision alignment and flexible dispensing technologies to support a wide range of materials and processes.
Versatile Dispensing Technologies
The desktop dispensing robot can be configured with a range of dispensing valves to support different materials and process requirements. This flexibility allows the system to handle low viscosity fluids, high viscosity pastes and fine feature deposition with consistent results. Supported dispense configurations include:
- High precision mixing and dispensing systems
- Piezo jet valves for high speed non contact dispensing
- Progressive cavity pumps for high viscosity materials
- Fine deposition pumps for sub 100 micrometre features
- Solder paste jetting valves
- Ultrasonic and air spray coating systems
System Options and Process Control
A range of optional features is available to enhance the performance, reliability, and usability of the desktop dispensing robot platform.
These options are designed to improve process stability, reduce operator intervention, and support automated calibration and real time monitoring across a wide range of dispensing applications.
Available enhancements include multi ratio precision mixing systems, laser based height detection for reflective substrates, automated nozzle cleaning, dispensing weight calibration using integrated micro scales, and low fluid level monitoring.
Typical Applications
Kulicke and Soffa desktop dispensing robots are widely used across electronics manufacturing, advanced packaging and research environments. Typical applications include
- Adhesive and epoxy dispensing
- Underfill and encapsulation
- Solder paste jetting and flux application
- Conformal coating and spray processes
- Potting, sealing and gasketing
- Precision material deposition for research and development
Technical Downloads
File
Desktop Dispensing Robot Series Data Sheet
Download
Related Products
Jet Dispense System
More
Semiconductor Micro Dispensing System
More
High Precision Micro Dispenser
More
DELO Adhesives
More
Further Information
What is a Desktop Dispensing Robot?
A desktop dispensing robot is a precision, table-top automation system used to apply controlled amounts of fluids onto substrates with high positional accuracy.
These systems typically combine multi axis motion control and programmable dispensing software to deliver accurate placement, high repeatability and consistent results across research, development and production environments.
Key characteristics of desktop dispensing robot:
- XYZ motorised motion for precise material placement
- Compatibility with a wide range of fluids and viscosities
- Programmable dispensing paths for dots, lines and patterns
- Compact desktop format suitable for laboratory and production use
Inseto Knowledge Base Document:
Read our free guide to the “What is Adhesive Dispensing”
Industry Segments
LED assembly, semiconductor and advanced packaging processes, camera and sensor module assembly, battery and energy storage assembly, medical device manufacturing, photonics and optoelectronics assembly, automotive electronics, aerospace and defence electronics, laboratory sample dispensing, and research and development process trials.
