Torsion Test
Torsion Test Overview:
- Performs bend and twist tests
- Utilises push-pull cartridges and fixtures
- Perform single or cyclic testing
- Test forces from up to 100Kg

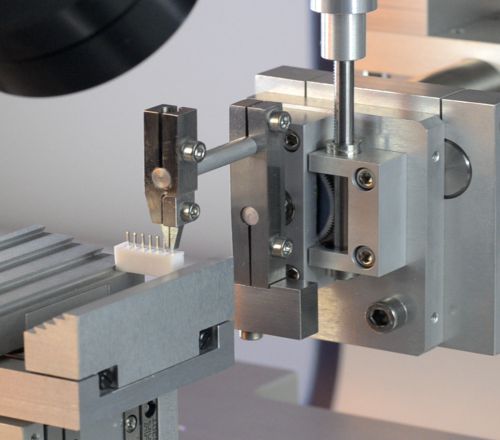

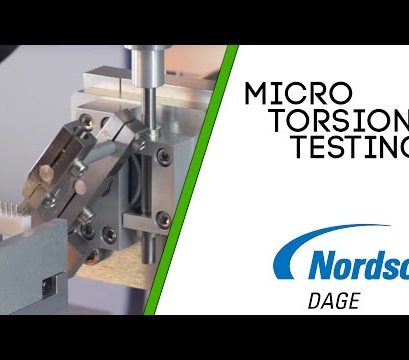

Torsion testing can be used to bend and twist component leads, including the legs of integrated circuits.
It is used to determine the ability of connections to survive processing steps and uses push-pull cartridges, combined with tooling to convert the vertical motion of the Z axis, into rotary motion.
Single cycle and multi-cycle testing can be performed to understand component lifetimes.
Further Information on Torsion Test:
File
View All Test Methods
Download
Torsion Test – Available on:
Further Information
Applications
Defect Analysis & Materials Characterisation
Industry Segments
Semiconductor, Automotive, Aerospace, Military, Telecommunications, Medical Electronics, Fibre Optics, Photonic Assembly, Microwave Electronics, Microelectronics, Power Semiconductor Assembly, Semiconductor Back-end Assembly, PCB Assembly Industries, Universities, Medical Devices
Nordson-DAGE Website
Region
Available from Inseto in the United Kingdom, Ireland, Sweden, Denmark, Norway and Finland
