MA200 Gen3 Automatic Mask Aligner
MA200 Gen3 Key Features
- Compact, space saving design
- Process Flexibility for multiple applications
- Expose Wafers from 50 to 200mm dia. & 200x200mm Substrates
- Contact Modes: Proximity, Soft, Hard, Vacuum

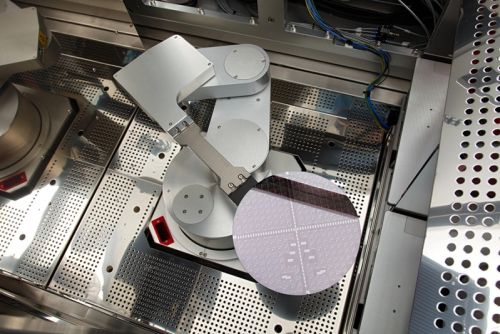

- Thin Wafer, Warped Wafer and Edge Handling solutions
- Optimal resolution utilising SUSS Diffraction Reducing Micro Optics

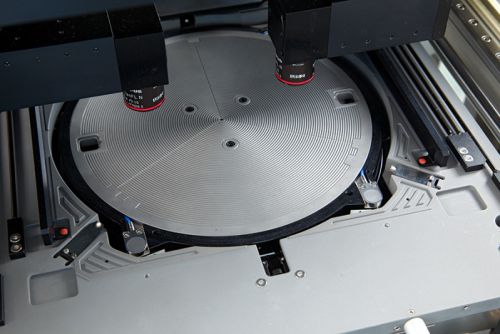

- Temperature controlled Chuck System enhances process capabilities

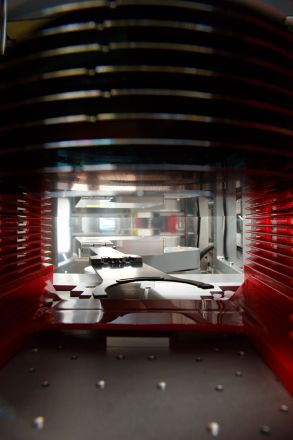

- Automatic mask management system stores up to 20 photomasks
- Options: Flow box, Angular Sidewall Exposure, SECS-II/GEM etc.
The SUSS MA200 Gen3 offers an intelligent lithography solution for high volume printing applications. Its compact, space saving design is ideal for production environments on up to 200mm wafers or 200x200mm substrates.
An extensive range of alignment options, flexible optics and special add-ons, make it an all-purpose tool for multiple handling and processing needs; all built upon SUSS expertise from the last 60 years of Mask Aligner development.
The MA200 Gen3 is used in a wide variety of production environments for the fabrication of MEMS devices, particularly with thick film resists and for wafer level packaging such as those required for HB LED manufacture.
Alignment accuracy is ± 1um @ 3ơ for both Top Side and Back Side Alignments; however < ± 0.5um @ 3ơ is readily achievable for SUSS’s novel Direct-Align function.

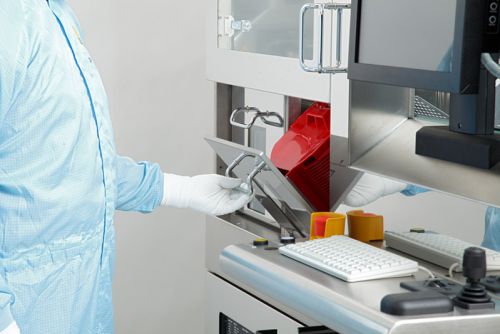

Designed with to be as intuitive as possible, the adjustable ergonomic interface, continuous run cassette load-port and direct view on exposure stage, make working under high load as comfortable as possible.
The experienced engineering teams at SUSS will analyse customer requirements and transform these into technical solutions on the MA200 Gen3 to provide a fully automated, stable, modular, high throughput system capable of future expansion and upgrades to meet whatever customer requirements arise in the future.
MA200 Gen3 Automatic Mask Aligner Technical Downloads
File
SUSS MA200 Gen3 Series Mask Aligner Datasheet
Download
Related Products
Photomask Equipment

MORE
Wafer Coating – Developing

MORE
Wafer Furnaces

MORE
Wafer Bonders

MORE
Semiconductor Wafers

MORE
Knowledge Base Articles
Description
Description
What Is A Mask Aligner (IKB-068)
Link
Description
Photolithography Basics (IKB-038)
Link
Description
Imprint Photolithography (IKB-054)
Link
Description
Photolithography Exposure Modes (IKB-053)
Link
Description
Semiconductor Wafer Selection Guide (IKB-046)
Link
Description
Semiconductor Wafer Description Nomenclature (IKB-044)
Link
Description
What is Spin Coating? (IKB-075)
Link
Further Information
What is an Automatic Mask Aligner?
An automatic mask aligner is a fully automated photolithography system used in semiconductor manufacturing to precisely align photomasks to wafers and transfer patterns at high throughput. Automatic mask aligners support repeatable, sub-micron alignment accuracy and are designed for production environments.
Key Features of an Automatic Mask Aligner
- Fully automated wafer loading, alignment, exposure and unloading
- Sub micron mask to wafer alignment
- Multiple exposure modes: proximity, soft, hard & vacuum contact
- Uniform and stable illumination optics for consistent exposure
- Automatic mask storage and selection
- Support for wafers and substrates, including thin or warped wafers
- High overlay accuracy and yield stability
- Compact, cleanroom compatible design
