Automatic Wafer Coat-Develop Cluster
ACS200 Gen3 Key Features
- Fully configurable Automatic Wafer Coat Develop Cluster
- Tool for high volume manufacturing of 50-200mm wafers
- Modular equipment design supports Multiple Configuration options
- Resist thicknesses from 1µm to over 500µm
- Handle 2 consecutive wafer sizes simultaneously
- Spin Coating: EBR, BSR, solvent pre-dispense
- Spray Coating: EBR, BSR, solvent dispense
- Positive or Negative Resist, Puddle, Fan Spray, High Pressure
- Hot plate, Cool Plate and Vapour Prime

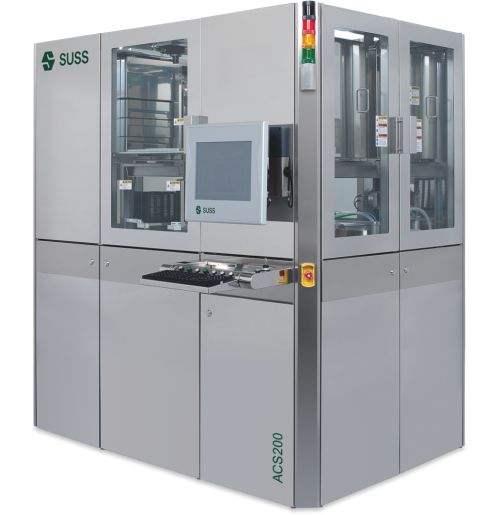

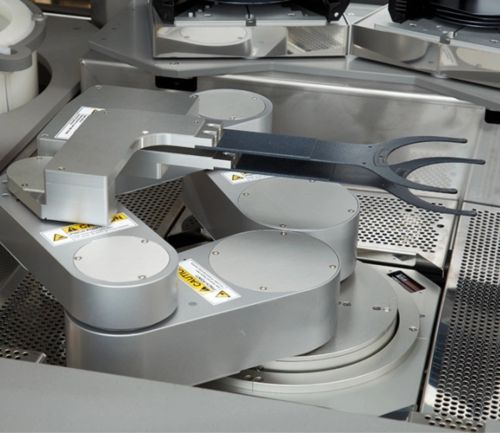

The SUSS ACS200 Gen3 platform is a fully automatic Wafer Coat-Develop Cluster, with the capability of up to 4 wet process modules and a maximum of 19 plates, suits the needs of either volume manufacturing or precision automated processing in R&D applications, of up to 200mm wafers/substrates.
The versatile systems base frame provides multiple configuration possibilities, e.g. up to 4 wet process modules (either coater and /or developer) with up to 19 plates or 2 wet process modules and 2 spray coater modules with up to 13 plates. With the possibility of stacking up to 3 plates over each wet process module and up to 7 plates in the 5th module, the ACS200 Gen3 allows the maximum module count in its class.
For developing applications, either an aqueous or solvent developer module can be configured. A high variety of different nozzle types are available to match with any process requirement. Optional filter fan units and temperature / humidity control of the tool results in process stability, reproducibility and finally in a high yield.
The ACS200 Gen3 Automatic Wafer Coat-Develop Cluster can be found in production environments developing a broad range of technical solutions from MEMS devices to LED fabrication and all applications in between. The ACS200 offers a resist developer platform that is reliable and precise, yet flexible to the production requirements.
Additional systems for up to 300mm wafers, with up to 12modules and integration into SMIF based factory automation are also available for high-volume production environments.
SUSS also manufacture a full range of semiautomatic equipment for puddle and spray coating and mask cleaning processes.
ACS200 Gen3 Automatic Wafer Coat-Develop Cluster Technical Downloads
File
SUSS ACS200 Gen3 Automatic Coater and Developer
Download
Related Products
Semi-Automatic Resist Coat & Developers

MORE
Semi-Automatic Spray Coaters

MORE
Semiconductor Wafers

MORE
Knowledge Base Articles
Description
Description
Photo-resist Coating Methods (IKB-067)
Link
Description
What is Spin Coating? (IKB-075)
Link
Description
Photolithography Basics (IKB-038)
Link
Description
Imprint Photolithography (IKB-054)
Link
Description
Photolithography Exposure Modes (IKB-053)
Link
Further Information
What are Fully Automated Wafer Coating and Developing Systems?
Fully automated wafer coating and developing systems are integrated platforms used to perform high‑throughput, highly repeatable photoresist coating and development processes in semiconductor manufacturing. These systems automatically handle wafers through multiple processing steps, including resist dispense, spin or spray coating, baking, developing and cleaning, with minimal operator intervention. They are designed to deliver consistent process control and high yield in both advanced R&D and volume production environments.
Key aspects of fully automated wafer coating and developing include:
- High Throughput, supporting continuous, unattended wafer processing
- Process Repeatability, ensuring consistent resist thickness and development results
- Modular Flexibility, allowing for spin, spray or advanced coating methods
- Manufacturing Integration, enabling seamless operation within factory environments
Inseto Knowledge Base Document:
Read our guide to the “Introduction to Photoresist Coatings“
Wiki – Semiconductor Device Fabrication
Applications
Wafer Resist Coating with Spin, Spray or Puddle Dispense, Resist Developing, Prime and Bake
Industry Segments
Wafer level chip-scale packaging, flip chip packaging, bumping, MEMS, LED, power devices, optical components and compound substrates and other semiconductor related device production applications
