Tabletop Scanning Acoustic Microscope: X-Sam M51

Key Features:

  • Semiautomatic scanning acoustic microscope (SAM)
  • Non-destructive SAM inspection of electronic devices
  • Flexible configurations according to specified needs
  • Advanced ultrasonic control for optimal results
  • Scanning frequency up to 250 MHz
  • Processing area: 400 x 200 mm

The X-SAM M51 scanning acoustic microscope (SAM) is designed for semiautomatic inspection of power semiconductor and other electronic assemblies, ensuring process capability and repeatability.

Acoustic microscopy employs high-frequency ultrasounds to non-destructively penetrate materials to make visible images of internal features, including defects such as cracks, delamination’s and voids. This technique is particularly useful for inspecting electronic solder joints, as it allows for the detection of hidden defects or imperfections within the solder joints themselves, such as air bubbles, gas inclusions, or foreign materials.

The M51 is a tabletop, high-precision acoustic inspection microscope featuring an intuitive user interface to easily setup and perform R&D activities, or day by day sample inspections. The system is designed for laboratory and cleanroom environments for rapid testing, analysis and quality inspection after sintering, or other bonding operations.

The X-SAM M51 delivers high-performance acoustic microscopy, utilising advanced ultrasonic control for optimal results, scanning frequency up to 250 MHz, manual loading, resolution up to 10µm per pixel and a scanning area of up to 400 x 200mm.

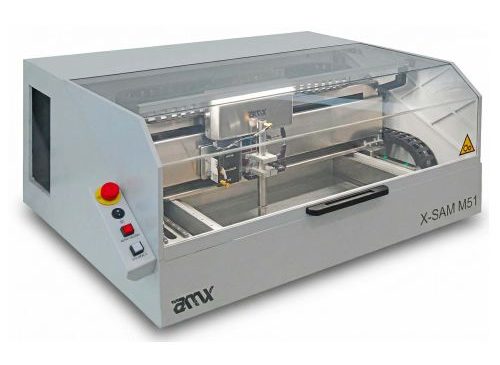

  • AMX-M51 Scanning Acoustic Microscope

X-SAM M51 Technical Downloads

File

X-SAM M51 Datasheet

Download

Related Products

Knowledge Base Articles

Further Information

Contact Us

Tel: +44 (0)1264 334505

Email: enquiries@inseto.co.uk

What is a Scanning Acoustic Microscope?

A Scanning Acoustic Microscope (SAM) is a high-resolution, non-destructive inspection tool that uses ultrasonic waves, typically in the range of 5 MHz to 400 MHz to visualize internal structures, and detect defects within solid materials. Unlike optical microscopes, which rely on light, SAM employs focused sound waves to penetrate a specimen and generate images based on differences in acoustic impedance between materials. This makes it ideal for examining subsurface features that are invisible to conventional imaging techniques.

How It Works:

  • A piezoelectric transducer emits ultrasonic pulses into the sample, usually through a water medium.
  • These waves reflect at interfaces where material properties change (e.g., voids, cracks, delaminations).
  • The reflected signals are analyzed to construct detailed images, enabling precise localization of defects.

Wiki – Acoustic Microscopy

View the Wikipedia “Acoustic Microscopy” overview

Applications

Void analysis of solder and Sintered Joints, Wafer Bump and Surface Inspection, Process Quality Control

Industry Segments

Power Electronics, Semiconductor, RF & Microwave Electronics, LED, Universities R&D, Aerospace and Hi-Reliability Devices etc
