Wafer Probe Station – LabAssistant

The LAB Assistant is an affordable manual wafer probe station designed for research centres, universities, teaching laboratories and low volume production environments. The probe stations feature a robust design in a small footprint and includes all the options required to start manual probing of wafers or devices, “out-of-the-box”.

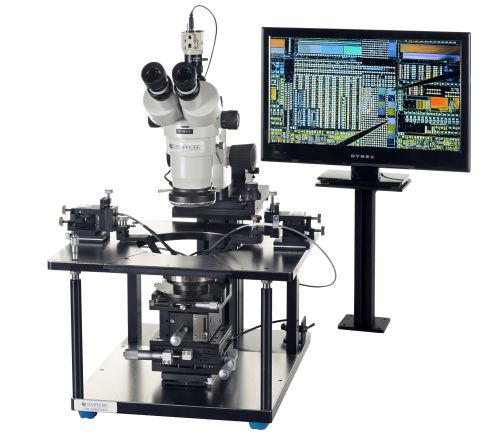

The LAB Assistant’s range of manual wafer probers are available in either DC or HF configurations, for probing of individual die or partial wafers, through to 200 mm diameter wafers.

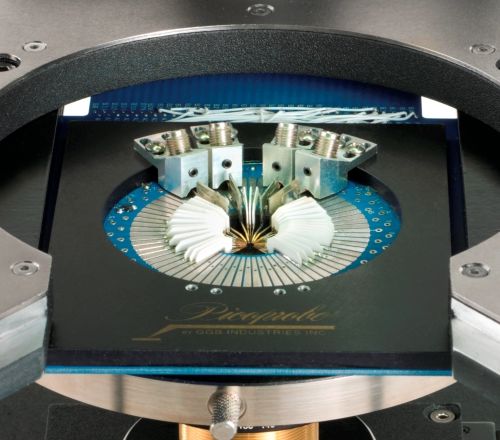

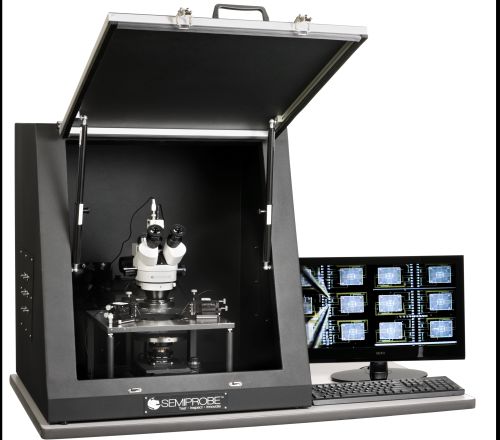

An extensive range of additional options and accessories can be added to the systems, including Dark Boxes, Thermal Chucks, CCTV Systems, Manipulators & Probe Arms, Probe Card Holders, Compound Microscopes and Vibration Isolation Tables etc.

LAB Assistant Wafer Probe Station standard features:

• Rigid aluminium base with rubber vibration isolation feet
• 100 x 100 mm Coaxial Microscope Stage
• Trinocular Stereo-zoom Microscope
• DC or HF Manipulators & Probes
• Grooved Vacuum Chuck suitable for die or partial wafers
• Magnetic X-Y-Z Stage with micrometer adjustments
• 360 degree Coarse & 10 degree fine theta adjustment
• Compact small footprint
• Complete system ready to probe out of the box!
