What is the difference between Thin Film and Thick Film Circuits
This document explains the key differences between thin film and thick film circuit technologies, focusing on their manufacturing methods, performance characteristics, cost considerations, and typical applications. (IKB-095).
Thin film and thick film circuits are both established technologies for creating electronic circuits on ceramic or similar substrates, but they differ significantly in how they are manufactured and in the performance they deliver.
Understanding these differences helps determine which technology is most appropriate for a given application.

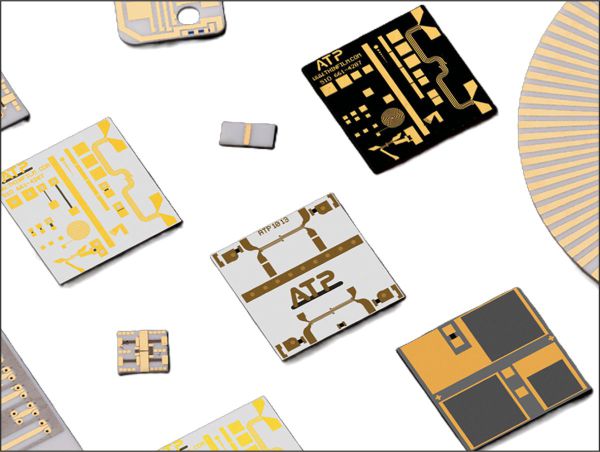

Thin Film Circuits
Thin film circuits are produced by depositing extremely thin layers of metal onto a substrate using vacuum based processes such as sputtering or other physical vapour deposition techniques. The deposited layers are typically less than one micrometre thick and are patterned using photolithography, allowing very fine geometries and highly consistent electrical characteristics.

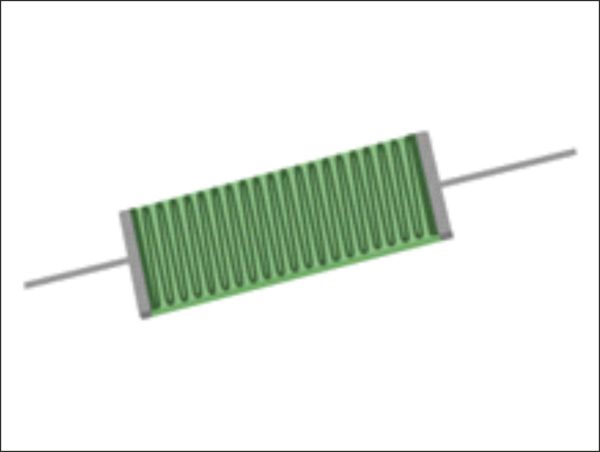

Thick Film Circuits
Thick film circuits, by contrast, are manufactured by screen printing conductive or resistive pastes onto a substrate. These pastes are then fired at high temperatures to form the circuit. The resulting layers are significantly thicker, commonly several micrometres to tens of micrometres, and the process is generally simpler and lower in cost.
Key differences:
(a) Manufacturing method
Thin film circuits use vacuum deposition and photolithographic patterning, enabling very fine and repeatable features. Thick film circuits use screen printing and firing processes, which are less precise but more economical for larger features and higher volumes.
(b) Precision and electrical performance
Thin film circuits offer much tighter tolerances, excellent temperature stability and low electrical noise, making them well suited to RF, microwave and other precision applications. Thick film circuits typically have wider tolerances and lower resolution, but are adequate for many general purpose and power related designs.
(c) Layer thickness and feature size
The deposited layers in thin film circuits are very thin, usually below one micrometre, allowing fine line widths and compact circuit layouts. Thick film circuits use much thicker layers, which limits minimum feature size but increases robustness.
(d) Cost and typical applications
Thin film circuits generally have a higher manufacturing cost due to the complexity of the processes involved but deliver superior performance where accuracy and stability are critical. Thick film circuits are more cost effective and are commonly used in power electronics, automotive and industrial applications where ultra fine precision is not required.
Summary:
Thin film and thick film circuits are differentiated primarily by their manufacturing methods, achievable precision, and cost.
Thin film technology uses vacuum deposition and photolithography to produce extremely fine, stable, and high performance circuits, making it suitable for precision and RF applications.
Thick film technology relies on screen printing and firing processes, offering greater robustness and lower cost, and is well suited to power, automotive, and industrial applications where ultra fine resolution is not required.
